| Kit Code | DMM-422 |
|---|---|
| Discipline | Electrical - AC/DC |
| Subdiscipline | Current-Voltage-Resistance |
| Range | DCA, DCV, ACA, ACV, Ω, µF, Hz, °F (Type-K) |
| Uncertainty | N/A |

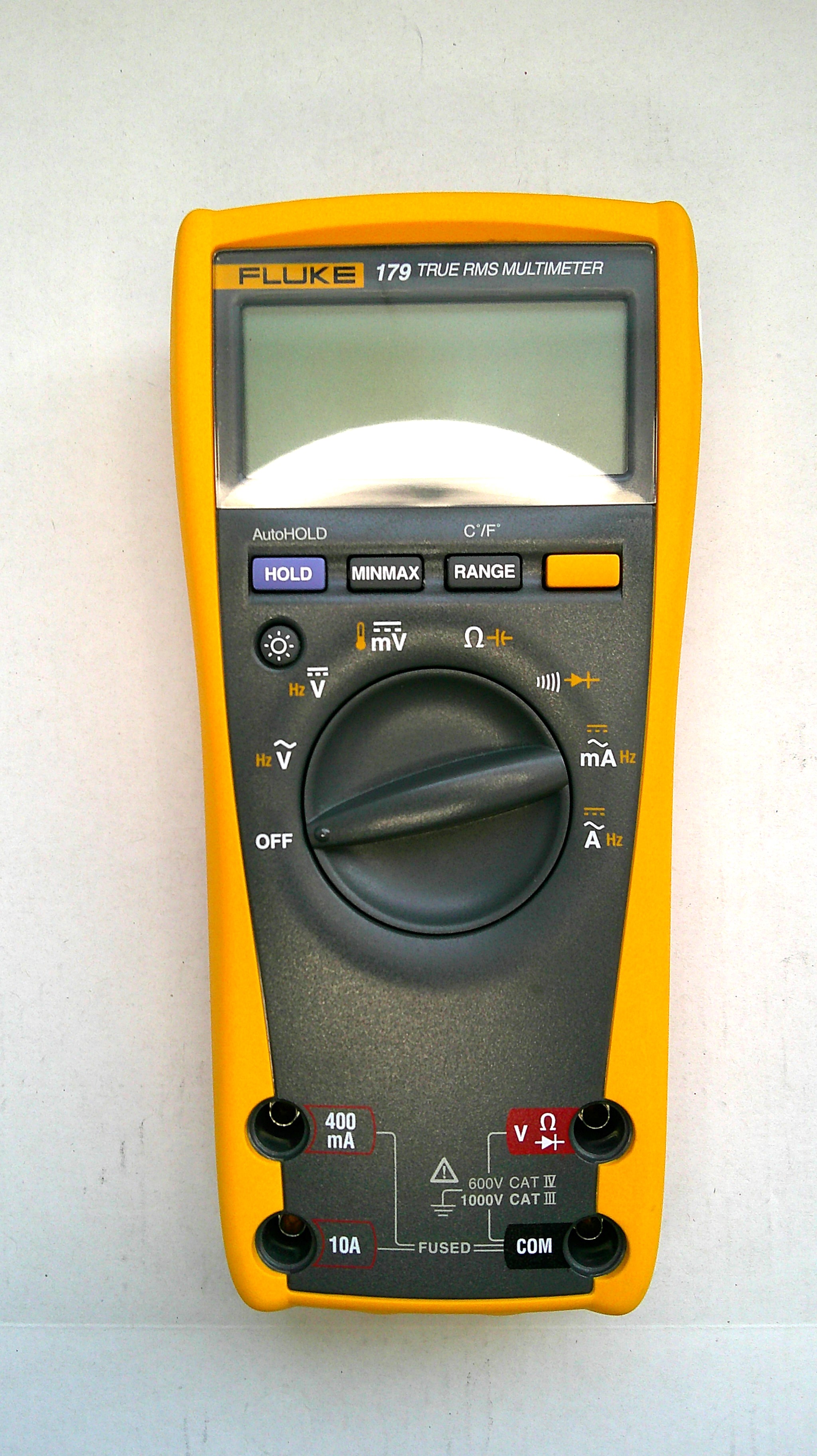

This ILC/PT Kit contains a Fluke 179 Digital Multimeter. Participants will generate known DC and Low-frequency Signals and report the observed artifact readings. Participants will use their lab practices to perform 13 measurements.
2x DC Voltage Measurements (200 mV, 60 v)
2x AC Voltage Measurements (200 mV@60 Hz, 200 V@400Hz)
2x Resistance Measurements (200 Ω, 250 kΩ)
1x DC Current Measurements (250 mA)
1x AC Current Measurement (200 mA@60Hz)
2x Capacitance Measurements (10 µF,10µF)
2x Frequency Measurements (100 Hz@1V, 10 kHz@5V)
1x Simulated Temperature Measurement (105°F Thermocouple -Type-K)
Participants are expected to be familiar with testing and calibration of 3.5 Digit Multimeters, have appropriate lab equipment and have measurement uncertainties appropriate for testing and calibration of similar devices.
